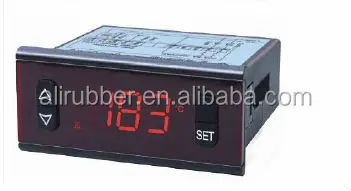

ED 681 digital thermostat with NTC sensor

FOB Reference Price:Get Latest Price
US $19-30 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Model Number:
ED330L
Usage:
Household
Theory:
Temperature Controller
Accuracy:
+/-1'C
Temperature range:
-20----+300'C
Dimension:
77x35x60mm
range of temp display:
-20'c-300'c
SupplyAbility
SupplyAbility:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
PP bag and standard box
Port
shenzhen
Lead Time :
with 5-7 days

ED 681 digital thermostat with NTC sensor



Features of Function:
   It is a mini-sized and integrated intelligent controller
  Temperature Control / Heating control / Value Storing / Self Testing.



Specifications:
1. Power supply:230VAC
2. Temperature sensor: NTC, 1pc, 1m(L)
3. Range of temperature display: -20 -300'c      Accuracy: +/-1\c
4. Range of set temperature: -20 -280‘c  Factory default :100'c
5. Temperature of the operating environment: ---10 -60'c ;
Relative Humidity:20% -90%(Non-condensing)
6. Relay output contact capacity
Control output: N.O. 16A/250VAC






Function details
1. Heating control:
Heater starts heating when cold-room temperature< (set temp.- hysteresis) and stops heating when
cold-room temperature >set temperature.
2. Abnormal work mode
When cold-room is short-circuited, HH is displayed; when the cold-room sensor is
open-circuited, LL is displayed. At the same time alarm LED flashes.



Notes for Installation:
1. The sensor cable leads must be kept separately from main voltage wires in order to avoid high frequency
noise induced. Separate the power supply of the loads from the power supply of the controller.
2.
The temperature controller can not be installed in the area with water drops.
In case of long-distance sensor installation from the controller, the sensor cable may be prolonged up to 100 m max. without any re-calibration.
3.

The temperature controller can not be installed in the area with water drops.
