For Industrial Usage CE & RoHs Approved XD-S-R-010 60W 135C 24V Automatic Controlled Temperature Electric Cable

FOB Reference Price:Get Latest Price
US $4-10 / Meters | 100 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alixd
Model Number:
XD-S-R-010
Type:
Insulated
Application:
Underground
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
Rubber
wattage:
60W
SupplyAbility
SupplyAbility:
8000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
pp bag and carton box.
Port
shenzhen
Lead Time :
7-10 days

Quick Details

Type:Electric Tracking Heat CablePower Source:ElectricPlace of Origin:Guangdong China (Mainland)
Brand Name:AlixdModel Number:XD-S-R-010Width8,10,12,14mm
Certification:CE,EMC,RoSH,ISO9001Size:Any size is availableMOQ:100 meter
Voltage:12,24,48,110,220,380VWattage:10-60wThcikness:4mm(standard)
Shielded layer:Al-Mg alloy or Tinned Copperself control temperature heating tape:self control temperature heatingJacketPVC,PE,PE.PVC,PE,Teflon
Supply mode:ManufacturersMarketing mode:Direct selling

Packaging & Delivery

Packaging Detail:Carton, Wooden case or other required packing
Delivery Detail:7-10 days according to your quantity



Specifications

1.Maximum withstand tempertature 185F
2.Maximum working temperature 149F
3.More than 10 years history
4.CE Certificate

Product Description



 Features:



* Can ensure heated body at the ideal temperature range constantly

* Can be multiple wraps and overlap, no local overheating or sintering phenomenon

* High electrical/thermal conversion rate, even heating, low energy consumption

* Can control temperature and adjust the output power automatically

* Small size, simple design and can be cut freely

* long service life, no noise, no pollution, save energy



Technical Data

                        For Industrial Usage CE & RoHs Approved XD-S-R-010 60W 135C 24V Automatic Controlled Temperature  Electric Cable

Model

Wattage

(W/m@10°C)

Maintain highest

temperature(C)

Critical

Temperature (C)

Operating

voltage (V)

Maximum

length (m)

XD-S-R-001

10DXW

10

65

85

12,24,48,110,220,380

150

XD-S-R-002

15DXW

15

65

85

12,24,48,110,220,380

120

XD-S-R-003

25DXW

25

65

85

12,24,48,110,220,380

100

XD-S-R-004

30DXW

30

65

85

12,24,48,110,220,380

100

XD-S-R-005

30ZXW

30

no

135

12,24,48,110,220,380

100

XD-S-R-006

45ZXW

45

no

135

12,24,48,110,220,380

100

XD-S-R-007

60ZXW

60

no

135

12,24,48,110,220,380

100

XD-S-R-008

30GXW

30

135

155

12,24,48,110,220,380

100

XD-S-R-009

50GXW

50

135

155

12,24,48,110,220,380

100

XD-S-R-010

60GXW

60

135

155

12,24,48,110,220,380

100

Detailed Images

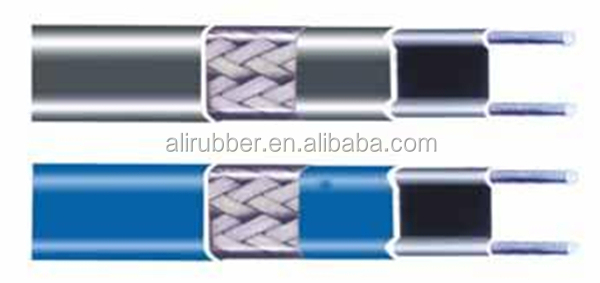

 Self Regulating Temperature Electric Heating Wire Cable

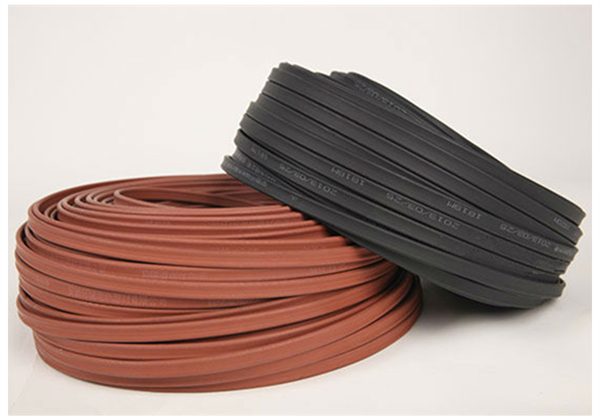

Self Regulating Temperature Electric Heating Wire Cable

Application Fields



•Floor heating: indoor floors and outdoor floors, like residential buildings, offices, factories, schools, hospitals, museums, sports ground.garage and warehouse
•Snow melting: on gutter and roof, in traffic region, slopes
•Pipe warming:Freeze protection;Pipe insulation
•Heating for baby animal husbandry
•Soil heating
•Snow melting on roads

•freeze protection of roofs and gutters

house warming, snow&ice melting,heat tracing etc.



Optional Accessories






Article

Application


Pipe heating cable

Pipe frost protection

Self-regulating Heating Cable For Pipe Freeze Protection

Roof heating cable

Roof frost protection

 Self-regulating Heating Cable For Pipe Freeze Protection

Gutter heating cable

Gutter snow melting

 Self-regulating Heating Cable For Pipe Freeze Protection

Outdoor heating cable

Outdoor road snow melting

 Self-regulating Heating Cable For Pipe Freeze Protection

Other Applications

Greenhouse heating;

Garage ground heating;

Soil heating;

Animal’s care room heating etc



 Self-regulating Heating Cable For Pipe Freeze Protection


Production Flow



 Self Regulating Temperature Electric Heating Wire Cable



Packaging & Shipping










Certifications



 Self Regulating Temperature Electric Heating Wire Cable



Product Testing

 Self-regulating Heating Cable For Pipe Freeze Protection
