12v Heated Cable Flat Electrical Cable/wire

FOB Reference Price:Get Latest Price
US $4-20 / Meters | 100 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alixd
Model Number:
XD-A-1163
Type:
Insulated
Application:
Heating
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
Fiberglass
Jacket:
PE,PE.PVC,PE,Teflon
Shielded layer:
Al-Mg alloy or Tinned Copper
Cable type:
Electric Tracking Heat Cable
Width:
8,10,12,14mm
Supply Ability
Supply Ability:
50000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
PP bag /Carton box or other required
Port
shenzhen
Lead Time :
3-7days

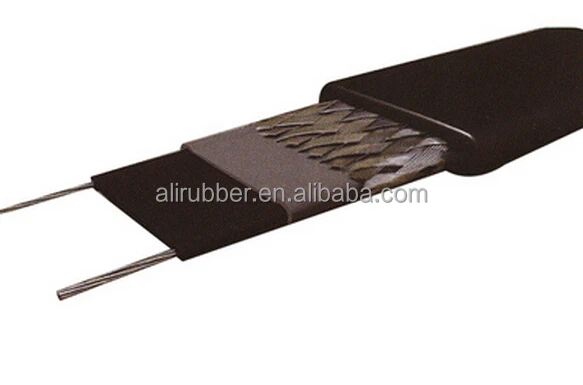

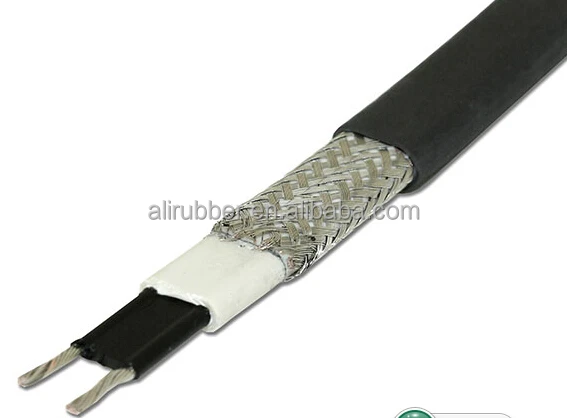

12v Heated Cable Flat Electrical Cable/wire

QQ20150421140016 .jpg

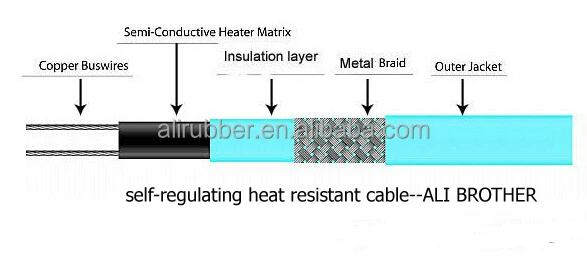

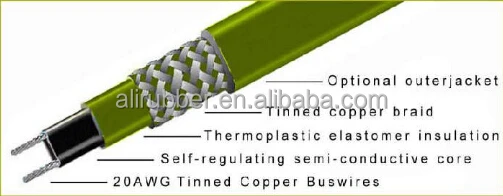

Features of SR cable

* Can ensure heated body at the ideal temperature range constantly



* Can be multiple wraps and overlap, no local overheating or sintering phenomenon



* High electrical/thermal conversion rate, even heating, low energy consumption



* Can control temperature and adjust the output power automatically



* Small size, simple design and can be cut freely



* long service life, no noise, no pollution, save energy



It can auto define working temperature and adjust outer power according to temperature of the heated

  system;heat tracing cable can be cut or lengthened it at any length(within the max length).Self                 regulating heating cable will not overheat or burnout,even when overlaped.







Series of products



Model

Wattage

(W/m@10 °C)

Maintain highest

temperature(C)

Critical

Temperature (C)

Operating

voltage (V)

Maximum

length (m)

10DXW

10

65

85

12,24,48,110,220,380

150

15DXW

15

65

85

12,24,48,110,220,380

120

25DXW

25

65

85

12,24,48,110,220,380

100

30DXW

30

65

85

12,24,48,110,220,380

100

30ZXW

30

105

135

12,24,48,110,220,380

100

45ZXW

45

105

135

12,24,48,110,220,380

100

60ZXW

60

105

135

12,24,48,110,220,380

100

30GXW

30

135

155

12,24,48,110,220,380

100

50GXW

50

135

155

12,24,48,110,220,380

100

60GXW

60

135

155

12,24,48,110,220,380

100







Series of productsMax. Maintenance Temp. (° C)Max. exposure
Temp. (° C)
Max. surface
Temp. ( ° C)
DXW65± 5° C85( ° C)85( ° C)
ZXW105± 5° C135( ° C)135( ° C)
GXW135 ± 5° C155 ( ° C)155 ( ° C)

DXW-self regulating heating cable low temperature
ZXW-self regulating heating cable medium temperature

GXW- self regulating heating cable high  temperature





  DXW(Low temperature  65℃)

 Voltage :12V,24V,36V,110V,220V,380V



 Linear Power :10w/m,15w/m,20w/m,25w/m,30w/m,35w/m










ZXW(Medium temperature 105℃)



Voltage 36V,110V,220V,380V,600V



Linear Power :30w/m,35w/m,45w/m,50w/m,60w/m










GSW(High temperature 130℃)

 Voltage:220V,380V,600V



 Linear Power:45w/m,55w/m,65w/m,75w/m

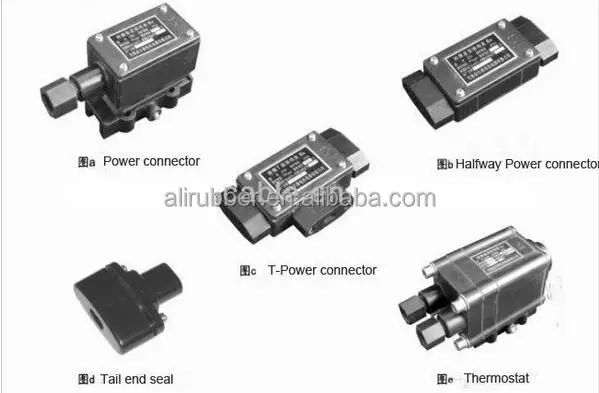

Spare parts




















Application fields

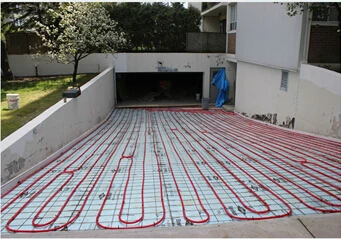

•Floor heating: indoor floors and outdoor floors, like residential buildings, offices, factories, schools, hospitals, museums, sports ground.garage and warehouse
•Snow melting: on gutter and roof, in traffic region, slopes
•Pipe warming:Freeze protection;Pipe insulation
•Heating for baby animal husbandry
•Soil heating
•Snow melting on roads

•freeze protection of roofs and gutters

house warming, snow&ice melting,heat tracing etc.
