Thermostat Digital Temperature controller for heating

FOB Reference Price:Get Latest Price
US $20-40 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alixd
Model Number:
XD-SF-661
Usage:
For heating
Operating Temperature:
-45~ 120 °C
Supply Voltage:
250VAC
Application:
display temperature range
size:
137*59*60mm
Current:
30A
Type:
display temperature range
SupplyAbility
SupplyAbility:
2000 Set/Sets per Week
Packaging & Delivery
Packaging Details
carton or other suitable case.
Port
shen zhen
Lead Time :
7-10 days



Quick Details

Place of Origin:
Guangdong China (Mainland)
Brand Name:
Alixd
Model Number:XD-SF-661
Type:
display temperature range
Application:
temperature display range: -45 ~ 120 °C (-49 ~ 248 ° F)
Supply Voltage:
250VAC
Current
30A
Operating Temperature:
-10 ~ 60 °C (14 ~ 140 ° F)
Usage:
Industrial

Packaging & Delivery

Packaging Detail:carton or others
Delivery Detail:7-10 days

Specifications

1.Small integrated intelligent control
2.Temperature control .
3. self-diagnosis



Thermostat    Digital Temperature controller for heating 30A 250VAC XD-SF-661

Specifications

All products can be customized according to customer's required with high quality.

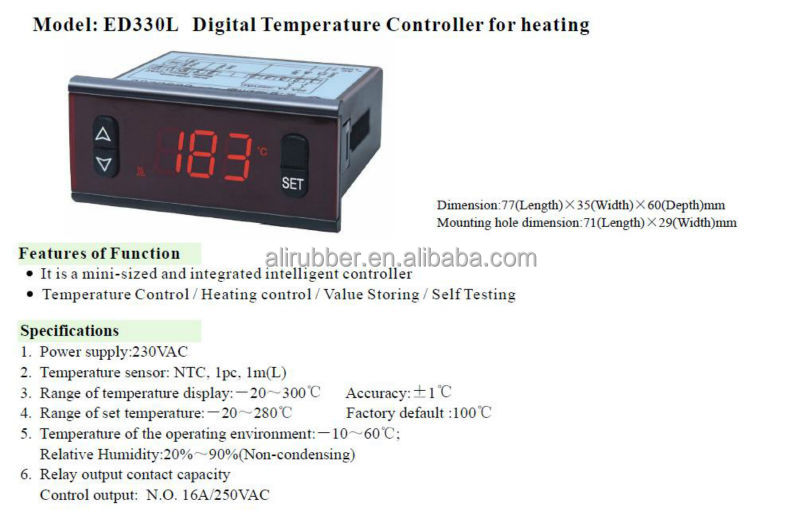

Model: ED330 digital display thermostat

Dimensions: 77MM (length) X 35MM (W) X60MM deep

Hole size: 71MM (long) X29MM (W)

A: Features

· Small integrated intelligent control

· Temperature control / cooling and heating mode conversion / set memory / self-diagnosis

II: Technical Parameters

1, Power: 230VAC

2, temperature probe: NTC, one, two meters long (regardless of sign)

3, the temperature display range: -45 ~ 120 °C (-49 ~ 248 ° F) Accuracy: ± 1 °C (± 2 ° F)

    Resolution: 0.1 °C (-19.9-99.9 °C)

4, the control temperature range: -45 ~ 120 °C (-49 ~ 248 ° F) Default value: 0 °C (32 ° F)

5, the working environment temperature: -10 ~ 60 °C (14 ~ 140 ° F): Relative Humidity: 20% ~ 90% (non-condensing)

6, contact capacity:

    · Control Output: normally open 16A/250VAC





Third, the panel operation

     1, temperature control (shutdown temperature) adjustment: press the set button flashes to control the temperature, press  or  key to change the value and memories. Hold down the key and  button and hold for more than 2 seconds to quickly increase or decrease the value. Press the set button to exit adjust status display cabinet temperature; If you do not press any key, the display cabinet temperature recovery after six seconds. (Control of temperature adjustment range: Parameter E 1 ~ parameter E 2)

2, cooling indicator: refrigeration process, refrigeration lights; constant temperature refrigeration lights off; delay the process, refrigeration lights flashing.

3, the heating indicator: the heating process, heating lights; constant temperature heating lamp; delay the process, heat lamp blinks.

4, parameter settings:

· Press the set button for six seconds after entering the parameter setting, while flashes E 1;

· Press the key to change the parameter set selection, order display E 2, E 3, E 4, E 5, C1, C2, E 1;

· Press the or  key to display and modify the value of this parameter, the stored data;

Not press any key within six seconds to return to normal operation.



5 , restore the factory settings : hold down down key for one second , and then hold down the up key six seconds , the display flashes. At this point all parameters restored to factory default , six seconds after the return to normal operation.

  6 , parameter lock : Press the down key for six seconds , flashing "OFF" means locked, "ON" indicates unlocked. Lock

      After setting the parameters , the parameters can only view can not be changed . Controlled temperature regulation is still valid. ( Factory default "O N")

Fourth, the functional description

1, the cooling control:

   · Temperature control mode ( parameter C2) is set to 0 , the compressor after a delay , when the cabinet temperature is greater than ( control temperature + temperature difference ) ,

     Compressor starts , cabinet temperature is less than the control temperature, the compressor stops.

   · To protect the compressor , the compressor stops every time must exceed the delay time (E4 parameters ) can be re- started.

2 , the heating control

   · Temperature control ( parameter C2) is set to 1 , the delay through the heater , when the cabinet temperature is lower than ( the control temperature - temperature difference ) , the heater starts heating cabinet temperature greater than the control temperature, the heater stops heating .

3 , non- normal operating mode :

   · Cabinet temperature probe short circuit or high temperature gauge ( greater than 120 °C / 248 ° F) display "HH"; cabinet temperature probe open or low overrun ( less than -45 °C / -41 ° F) to display "LL". Warning lights flashing.

V. Installation Precautions

1 , in order to prevent high-frequency interference , the probe line in conjunction with power lines or bundle of parallel control lines to separate wiring .

2 , such as the installation need to extend the probe lines up to 100 meters , is not subject to re- examination.

3, the thermostat can not be installed where there is dripping .

Sixth, the thermostat matching accessories

1 , a temperature probe

2 , a mounting bracket

3 , a baffle and ¢ 3 * 10MM screw 1 .

High accuracy Digital Thermostat
